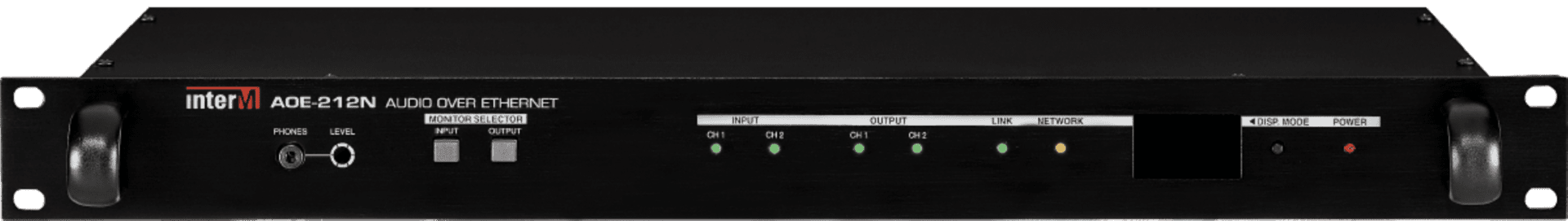

AOE-212N

Audio signal transceiver on the network

● Audio signal transceiver on the network (2 channels in real time)
● Integral duplex data transport on the Ethernet network.
● Extension of the device
-Jow 70 receivers in multicast mode (1 to 70)
-The to 20 receivers in Unicast mode (1 to 20)

Specifications

Audio channel2
Bandwidth (Hz)20 - 20000
ConnexionUTP
Contacts8
Data speed19200 bps
Data typeRS-232C - RS-422
Dimensions (W x H x D) (mm)482 x 44 x280 - 1U
Operating temperature-10°C ~ 40°C
Power source230VAC - 50/60Hz - 24VDC
Sampling24 Bit - 48KHz
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
