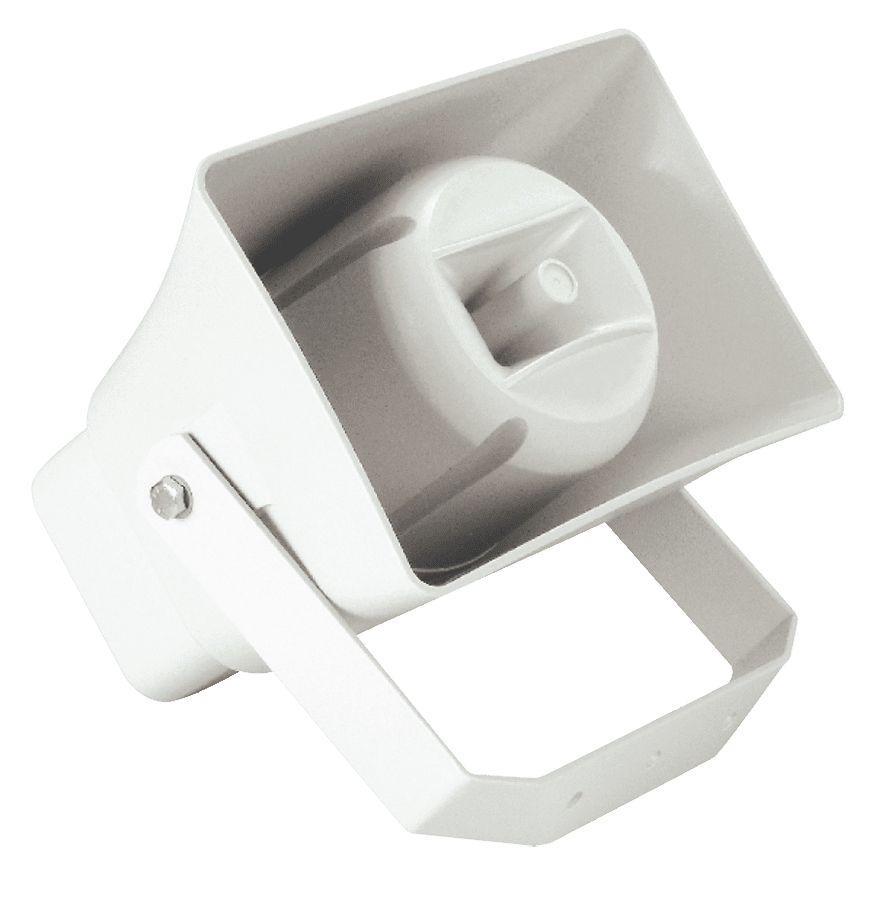

2-Way Music Horn Speaker EN54-24 Type B

  • The CS-5HTBS long-range enclosure is equipped with a 2-way system, thereby providing a wide fre-quency range and high sensitivity, making it ideal for the high-quality reproduction of voice and music.
  • With its controlled-directivity acoustical horn and two transducers, one for low frequencies and the other for high, this unique rectangular enclosure produces amazingly pure sound.
  • The horn is waterproof and can be used in high-humidity environments. It is therefore suitable for outdoor use such as sports fields, stadiums, theme parks, exhibition halls and air terminals, as well as for applications used in P.A and evacuation systems.


100V line power / Impedance3,75/7,5/15/30 W
Bandwidth (Hz)120 - 20000
Cone (material)Polypropylene
Body grill (material)ABS fireproof - Bracket INOX
Dimensions (WxHxD) (mm)315x215x355
Directivity @ 1 KHz60° H x 100° V
Nominal power RMS30W
Operating temperature (°C)-25°C to + 70°C
Protection ratingIP 66
Sensitivity dB (1W/1m)96
Speaker5" 2 way
StandardEN 54-24 (type B)
Weight (Kg)4,65
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
