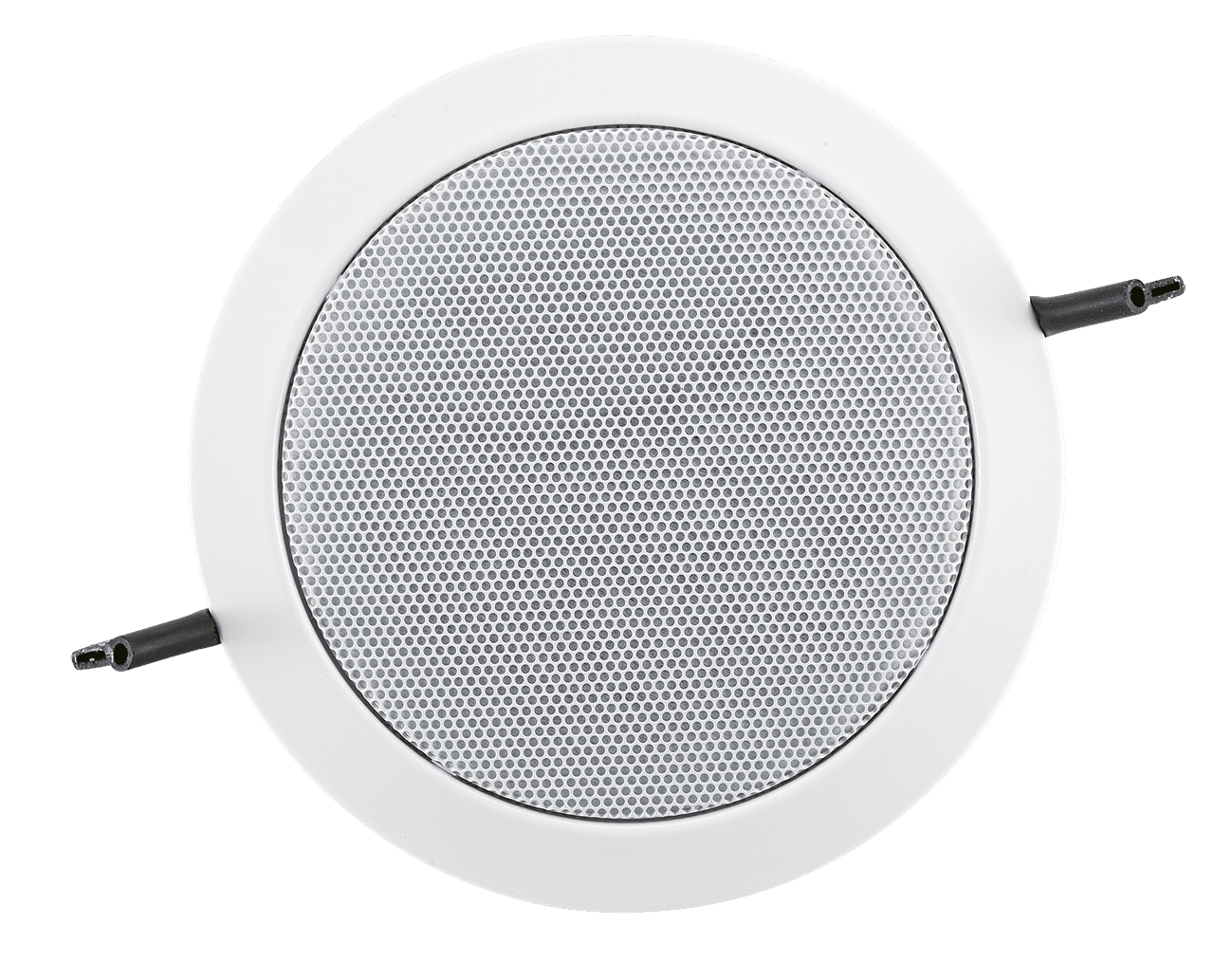

Ceiling Speaker EN5424. 1.5 / 3 / 6W 100V. Type A

  • Quick-installation ceiling speaker !

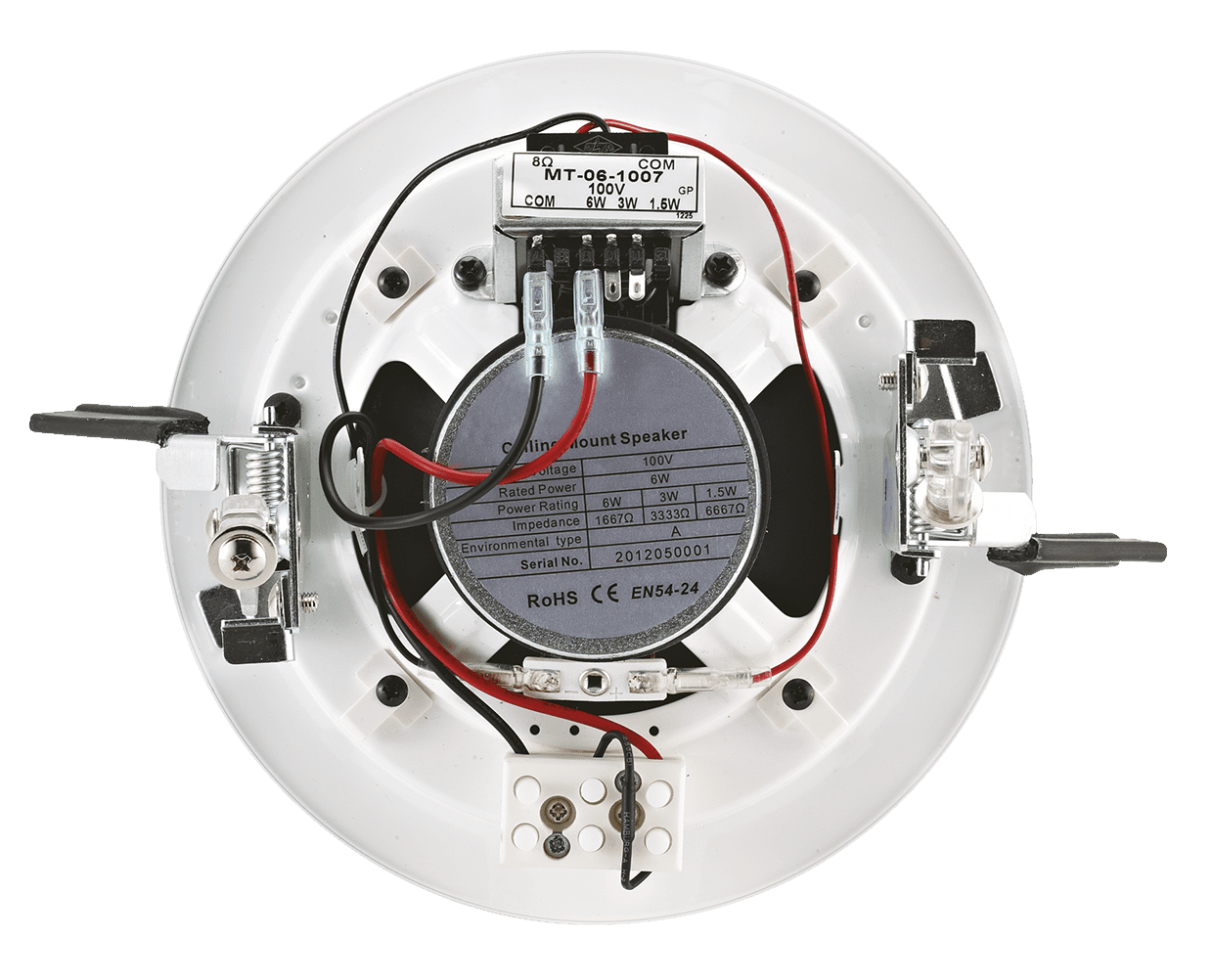

  • This ceiling speaker can be used to display messages and to play music. It has a ceramic terminal block and tool-free installation system, making it quick and easy to install.
  • It is perfectly suited for most low-rise buildings with a false ceiling.

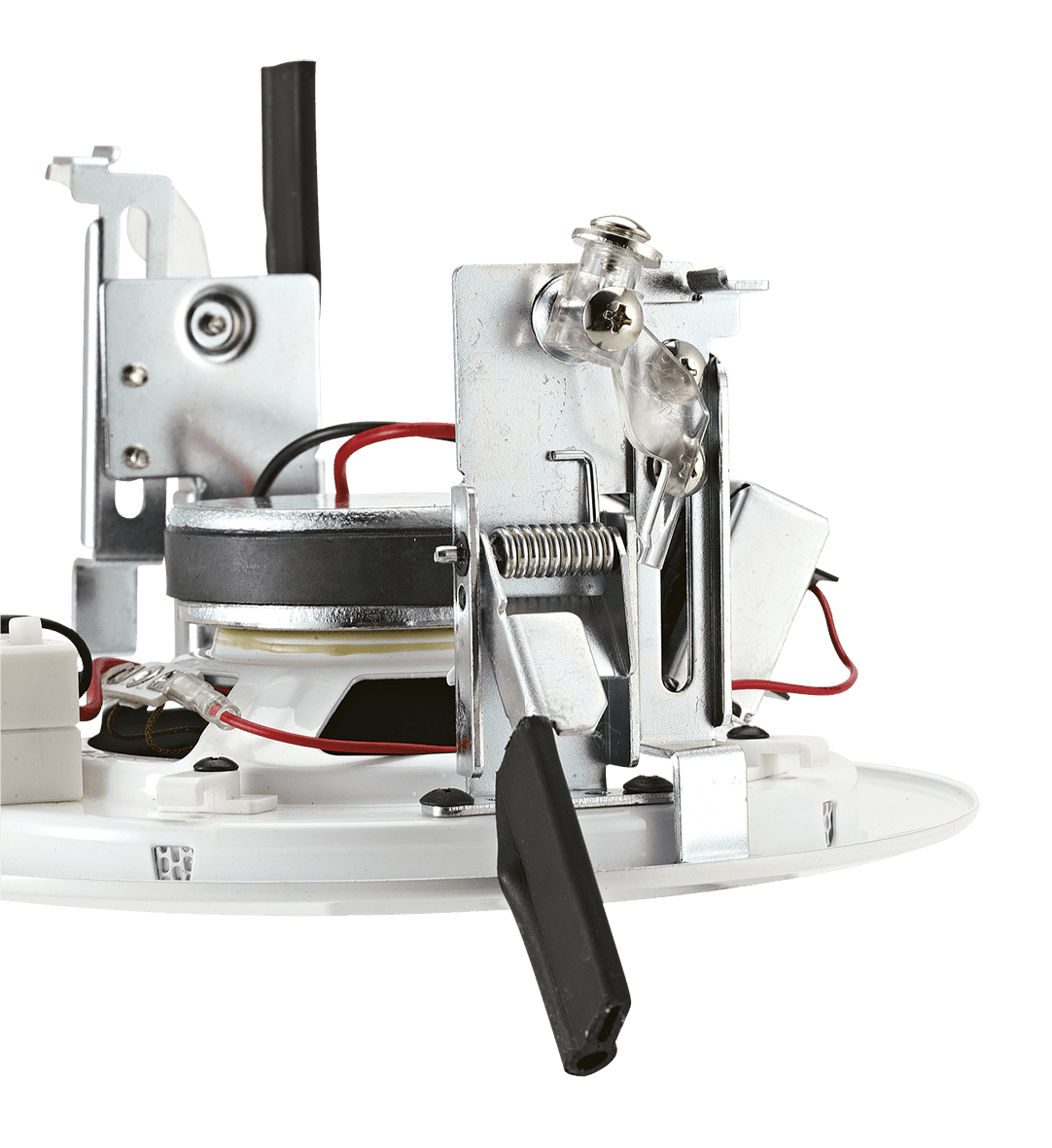

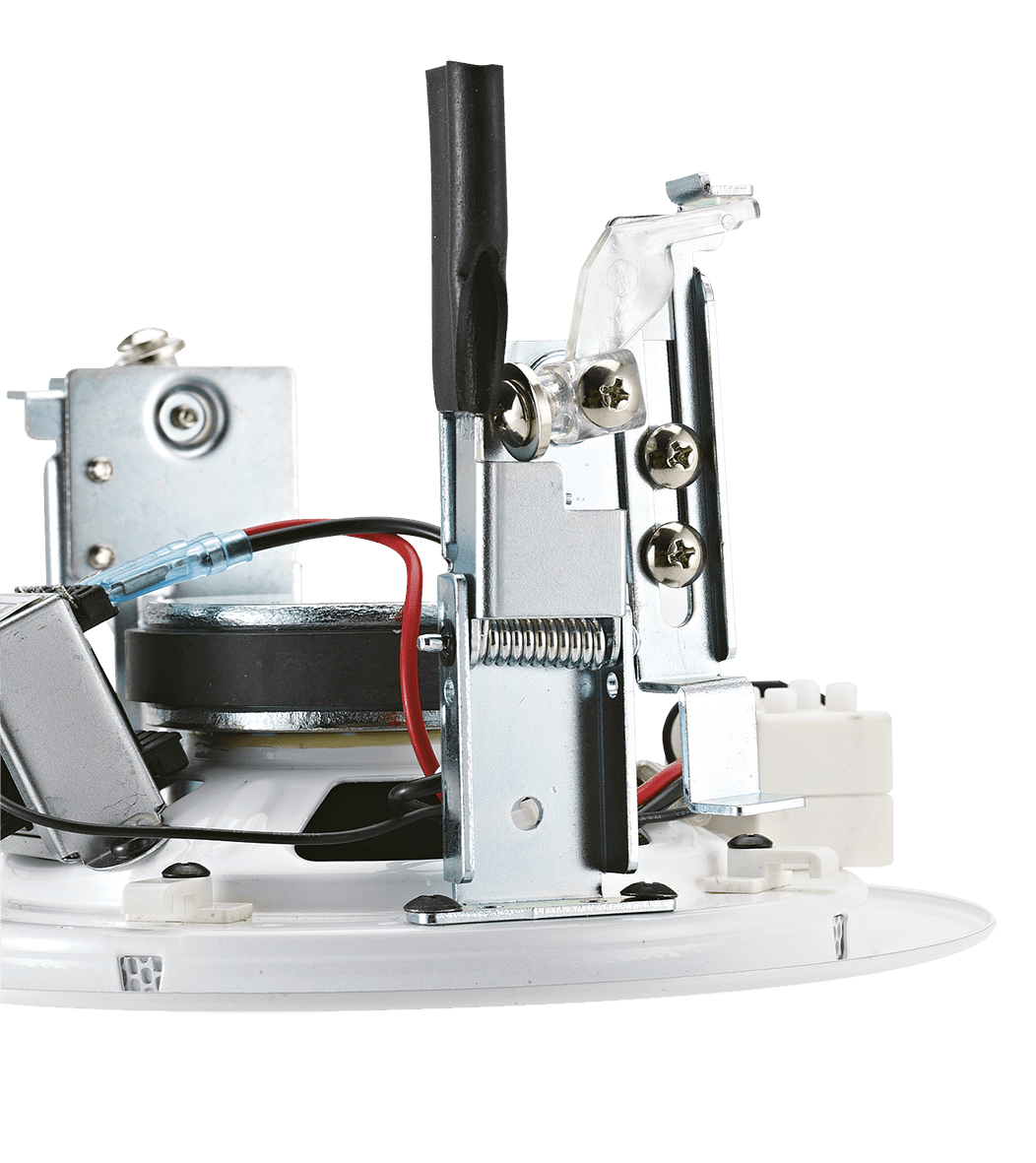

  • IMMEDIATE INSTALLATION : This ceiling speaker is quick and easy to install. Thanks to its patented installation system, it can be attached to the ceiling in a matter of seconds, thereby reducing set-up time.
  • CSE-5206EN is designed for use in EN 54-24 (Type A) P.A and Voice Alarm Systems.


100V line power / Impedance1,5/3/6W
Bandwidth80 - 20000
Cone (material)Paper
Body grill (material)Metal
Dimensions (ØxP) (mm)183 x 97,5
Directivity @ 1 KHz150°
Embedding (mm)168
Operating temperature (°C)-10°C to + 55°C
Protection ratingIP 21
Sensitivity dB (1W/1m)92
StandardEN 54-24 (type A)
Weight (Kg)1
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
