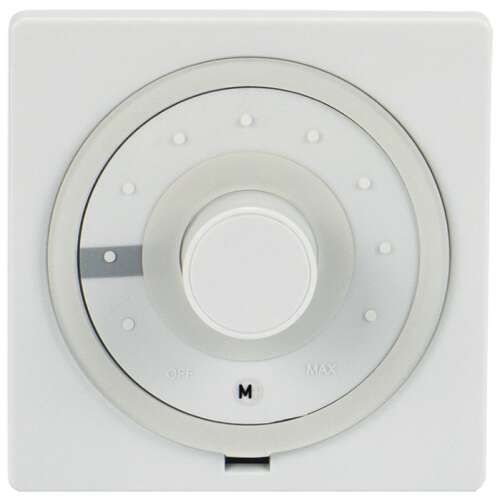

VC 30

30W Attenuator with Level Recovery

30W Attenuator with Level Recovery

• These are 100 V line attenuators offering a complete solution for public address facilities.
• They have a 24 V DC level recovery.
• Comes with recessed case: VC E box
• Processing box available as an option: VC S box S

Specifications

Accessories (Provided)BOITIER VC E: In-wall mounting
Attenuation9 x 6dB + OFF
Bandwidth (Hz)50 to 20 000
ColourWhite RAL 9003
Dimensions (LxPxH) (mm)86x86x67.5
Humidity<95%
Level reset24VDC 20 mA
Line voltage100V
MaterialFireproof PC
Power30W
Temperature0°C ~ 40°C
Weight (g)189g
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
