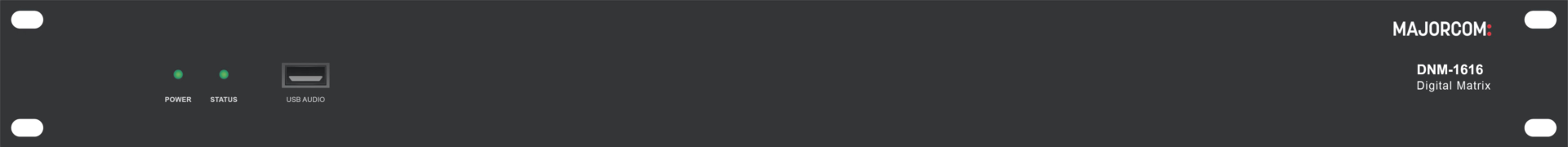

DNM-1616

Digital audio matrix 16 inputs + 16 analog outputs

The DNM matrices embed Analog Device's SHARC 21489, a powerful digital audio signal processing platform based on a 64-bit floating-point DSP engine. This series offers a wide range of digital processing tools for designing, configuring and optimizing audio systems. The software can fully control and manage the entire DNM series, as well as all their processing functions, including :

  • AFC (adaptive anti-feedback control),
  • AEC (acoustic echo cancellation),
  • ANS (automatic noise cancellation),
  • ANC (ambient noise compensation),
  • "Bessel", "Butterworth" and "Linkwitz-Riley" filters,
  • AGC (automatic gain control),
  • Ducker (multiple priority management by modulation detection),
  • PEQ,
  • GEQ,
  • Delay,
  • Crossover,
  • Automatic mixing with gain sharing,
  • And much more !

The DNM software offers an intuitive graphical user interface, which provides quick and easy access to all channels in a single window. In this user-friendly environment, the audio system designer or installer can clearly view and adjust all input levels, DSP audio processing parameters, mastering and output levels.

All product details

The audio DSP shall have 16 balanced inputs and 16 balanced output channels for microphone or line-level analog audio signals, each independently controllable with removable euro block connectors. The DSP shall have an Ethernet connection for control and programming on a separate RJ-45 jack, USB audio, and 8 channels of configurable GPIO and 2 serial ports on a removable euro block.

The audio DSP shall be a 1 RU rack mountable chassis and include configurable signal processing, including but not limited to: signal routing and mixing, equalization, filtering, dynamics, delay, as well as Automatic Gain Control (AGC), Ambient Noise Compensation (ANC), Adaptive Feedback Control (AFC), Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS) and Automatic Voice Tracking Camera Control with no additional licenses. The audio DSP shall be controlled, configured, and monitored via DNM software, UDP or serial control.

The audio DSP shall be compliant to UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition), UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), and IEC/EN 62368-1 (2nd edition); EN 55032:2015, EN 61000-3-2:2014, EN 61000- 3-3:2013, EN 55035:2017, FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, and CISPR13.

Warranty shall be 2 years. The audio DSP shall be MAJORCOM matrix DNM-1616.

Specifications

ProcessorDI SHARC 21489 @450 MHz SIMD
Sampling rate/quantification bits48K/24bit
Number of analog input and output channels16x16
Input gain0/3/6/9/12/15/18/21/24/27/30 33/36/39/42/45/48 dBu
Phantom power supply+48V/10mA max
Frequency response (20 ~ 20kHz)±0.3dB
Maximum level+18dBu
THD+N<-94dB @4dBu
Input dynamic range110dB
Output dynamic range112dB
Channel isolation at 1kHz108dB
Input impedance (balanced connection)5.4KΩ
Output impedance (balanced connection)600Ω
System delay<3ms
Power supplyAC110~240V, 50Hz/60Hz
Dimensions (W x D x H)482x260x45mm
Weight with packaging4 KG
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
